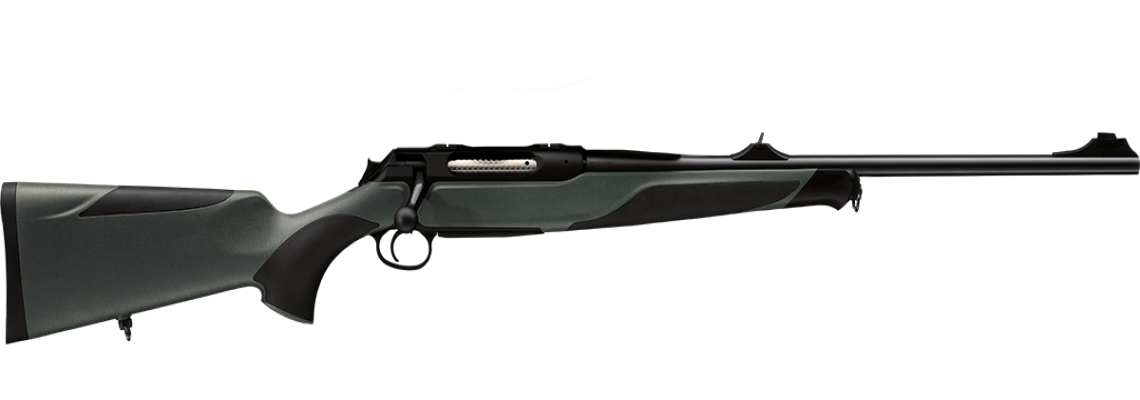

404 CLASSIC XT
SAUER
Click the image to enlarge
TECHNICAL DATA - SAUER 404 CLASSIC XT
Caliber groups / Bolt heads
| Medium |
.243 Win., 6,5x55, .270 Win., 7x64, .308 Win., .30-06 Spring., 8x57 IS, 9,3x62 |
| Magnum |
7 mm Rem. Mag., .300 Win. Mag., 8x68 S, .338 Win. Mag., .375 H&H Mag. |
| Jeffery |
.404 Jeffrey |
| Swiss |
10,3x60R |
Barrel length/ Weight
|
|
Ø |
Barrel length |
Weight |
|
Medium |
17 mm / 19 mm |
51 cm / 56 cm |
ab 3,26 kg |
|
Magnum |
17 mm / 19 mm |
62 mm |
ab 3,38 kg |
|
Jeffery |
19 mm |
62 mm |
|
|
Swiss |
19 mm |
70 mm |
Length of Twist
|
Caliber |
Length of twist (mm) |
Length of twist (Inches) |
|
.243 |
254 mm |
10,0" |
|
6,5x55 |
220 mm |
8,7" |
|
6,5 Creedmoor |
220 mm |
8,7" |
|
.270 |
254 mm |
10,0" |
|
7x64 |
220 mm | 8,7" |
|
.308 Win. |
279 mm | 11,0" |
|
.30-06 Spring. |
279 mm | 11,0" |
|
8x57 IS |
240 mm | 9,4" |
|
9,3x62 |
360 | 14,2" |
|
7mm Rem. Mag. |
241 mm | 9,5" |
|
.300 Win. Mag. |
279 mm | 11,0" |
|
8x68 S |
279 mm | 11,0" |
|
338 Win. Mag. |
305 mm | 12,0" |
|
.375 H&H Mag. |
305 mm | 12,0" |
|
.404 Jeffery |
420 mm | 16,5" |
|
10,3x60R |
450 mm | 17,1" |
The uncompromising all-rounder for every game trail.
With its indestructible polymer stock, the Classic XT shrugs off adversity and brings the performance of the S 404 to bear long after others have ‘laid down their arms’.
- Indestructible polymer stock with comfortable Soft Touch coating and elastomeric panels is ideal for any terrain and weather
- Aviation-grade high-alloy aluminum receiver
- Perfectly placed ergonomic manual cocking slide on the bolt shroud
- Easily replaceable bolt head makes switching from Standard to Magnum calibers a snap
- Twin ejectors for a precisely perpendicular ejection pattern
- 6-lug bolt locks directly into the barrel
- Jeweled bolt body
- SAUER Quattro trigger with choice of four trigger pull weights: 550 g (1.2 lbs), 750 g (1.7 lbs), 1000 g (2.2 lbs) and 1250 g (2.7 lbs)
- Infinitely adjustable trigger blade with 8 mm (0.3 in) adjustment range for length of pull and a left-to-right swivel range of 5 degrees
- SAUER Universal Mount (SUM) integral to with receiver for an extremely low build height
- SAUER universal key (SUS) integrated into the front sling swivel for forend and buttstock removal, barrel removal or replacement, and selection of trigger pull weight
- MagLock magazine safety
