3-9×40 AO MIL DOT IR
VANTAGE
Click the image to enlarge
PRODUCT SPECIFICATION
|
Chassis |
1" Mono-tube |
|
Optical System |
3-9× |
|
Objective |
40mm |
|
Reticle |
Mil Dot Center |
|
Illumination |
Red / Green - 5 Levels |
|
Focus/Parallax |
Adjustable Objective - 9m / 10yds to Infinity |
|
Field of View: m @100m / ft @100yds |
13 - 4.2m / 39 - 12.7ft |
|
Eye relief |
89mm / 3.5″ |
|

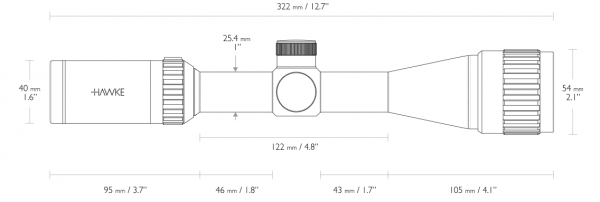

Length |
322mm / 12.7″ |
|
Weight |
507g / 17.9oz |
Waterproof, Shockproof, Nitrogen purged.
All calibre rated.
FURTHER INFORMATION
|
Material |
Aluminium |
|
Exit Pupil |
13 - 4mm / 0.5 - 0.2″ |
|
Ocular Type |
Fast Focus |
|
Lens Coating |
Fully Multi-Coated - 11 Layers |
|
Power Selector Style |
Knurled Posi-Grip |
|
Focal Plane |
Second Focal Plane (SFP) |
|
Warranty |
Hawke Worldwide Warranty |
|
Elevation Increment |
¼ MOA |
|
Elevation Adjustment Range |
100 MOA |
|
Windage Increment |
¼ MOA |
|
Windage Adjustment Range |
100 MOA |
|
Turret Caps |
Yes |
|
Turret Type: |
Low Profile |
PRODUCT DETAILS
- 11 layer fully multi-coated optics for excellent clarity
- Adjustable objective for parallax correction
- 1 inch mono-tube chassis for superior strength
- Glass etched reticle with red and green illumination
- Rheostat on saddle offers 5 levels of brightness
- ¼ MOA low profile no-snag fingertip turrets
- Fast focus eyebell and high torque zoom ring
Available Reticles:

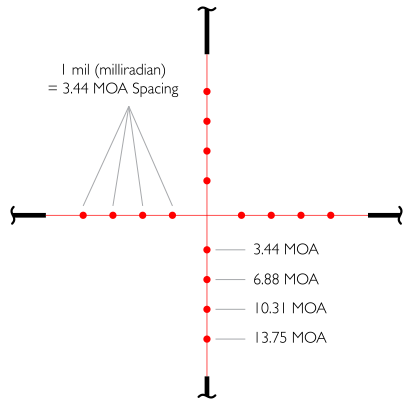

MIL DOT ILLUMINATED RETICLE
The classic Mil Dot features multiple aim points for hold-over and hold-under. Accurate mil spacing on 10x, featuring 4 Mil Dots in each direction. Glass etched reticle that has 5 brightness levels of illumination in both red and green, or can be turned off for a solid black reticle.
